Applications

• Oil Field
• long range enforce the law
• Military
• Airport
• Forest fire proof
• Transportation

• National defense
• Border defense
• Maritime
• nuclear power staion
• search and rescue
• harbor

Features

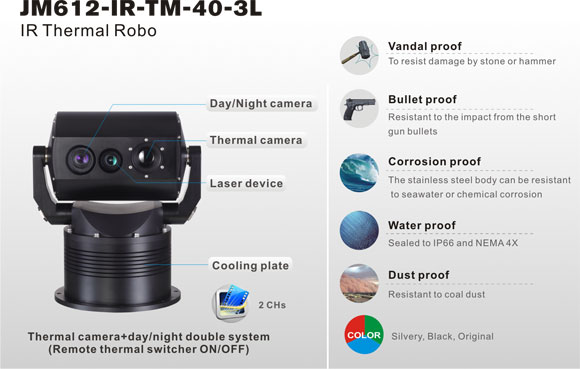

• Integrated with day/night camera,thermal,lens,CPM and variable speed pan/tilt motor and enclosure
• The body machined from aluminum alloy or 316#stainless steel, rugged and wind proof
• 360 continuous pan/tilt rotation with dual Image output
• Built-in 1PCs 3W IR laser for improvement of night view performances
• 68°~1.5° adjustable,Laser Night Vision range for human detection upto 500m
• Auto/ manual laser ON/OFF control (Auto mode, the Laser is automatically ON/OFF for the shift from camera B/W mode)
• CCD window with filmed and toughened glass
• Unique DIP switch & hot-key design simplify system setup
• Unique Firmware Online Upgrade (FOU) function provide convenience for customized requirement and system maintenance
• Built in temperature control and thermal part separate remote ON/OFF prolong the using life
• Auto/Manual calibration ensure accurate motor operation
• IP module optional
• GPS interface and/or radar and digital compass interface(NM0183 protocol) optional

Thermal Optical Parameter

• FPA(Focal Plane Array):320×240 or 640×480
• Detector material:Vanadium Oxide(VOX)
• Receivable IR wave length:7.5~14μm(3~5μm optional)
• Sensitivity(NETD):35mk@f1.0/85mk@f1.6
• Time to image:less than 2 second
• Minimum pixel:38×38/25×25/17×17μm
• Effective imaging temperature:-40ºC~+75ºC
• 2X/4X optical zoom optional

Thermal Camera Parameter

• 19mm/35mm/40mm Multiple choice of fixed or motorized focus lens optional
• 2-FOV or continuous zoom lens optional
• Optional target surface temperature testing function
• The thermal part separate remote ON/OFF
• Multi image modes are options, such as White hot, Black hot, Fusion, Rainbow etc
• High temperature target Pseudo Color display function
• Automatic focus and energy abnormal alarm function optional
• Digital Detail Enhancement

• Built-in day/night IOP camera module or HD camera
• Back light compensation on/off selectable
• Wide Dynamic range functions
• Mini.Illumination:0.1Lux(1/3s,color) 0.01Lux(1/3s,B/W)
• Optional 8 Privacy Masking Zone
• Image Mirror,Electronic shutter/Slow shutter
• Automatic infrared filter out mode(ICR)
• Backlight compensation,Video Freeze function

Laser Parameter

• Wave Length: 808±5nm
• Laser power: 3W
• lighting angle: 68°～1.5°Continuous adjustable, Electric synchronous zoom
• Zoom speed: About 2.5 seconds(optical, near -far)
• Distance: Far: >500m, Near: >80m
• Light setup: Auto/Manual

Pan/Tilt Parameter

• User definable 128 preset , 8 preset tour, preset video frozen
• 360° endless rotation
• User definable auto-scan, pattern, scan speed,preset tour
• User definable left/right pan limit, proportional pan speed
• User definable power-up action, including self-testing diagnostics
• Auto / Manual zero position calibration
• OSD password protection, prevent unauthorized change to the system
• OSD programming menu,inside temperature and PTZ(Title/Time/Pan/Tilt/Zoom display)
• RS-485/RS-422 half duplex and full duplex optional
• Pelco P/D protocol and customize protocol optional
• Surge & non-volatile protection
