Applications

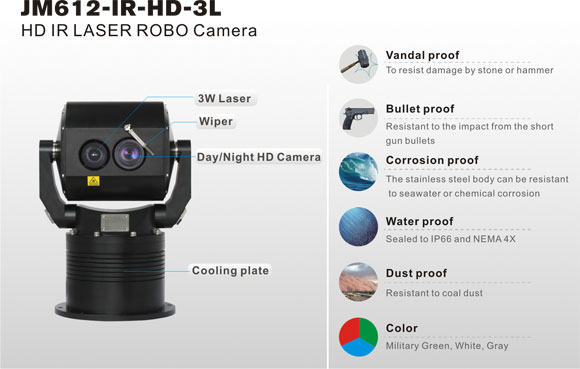

LeadEx JM612-IR-HD IR LASER ROBO is a robust designed pan/tilt/zoom and 3W IR laser, high definition camera system. Its body is machined from Aluminum Alloy or 316L# Stainless Steel, and Integrated with Day/Night IOP high definition (1920x1080) camera module, central processing module, variable high-speed pan/tilt motor and enclosure.
JM612-IR-HD is the model with 1920x1080 high definition output and PTZ control through IP network. This model supports 20x or 30X optical zoom
Typical applications include: marine transportation, military foundation, perimeter protection, nuclear facility, oil refineries, rigs and offshore drilling platform, oil& gas station, chemical plants, embassies, airports, city surveillance, government and vehicles etc.

Features

• Integrated with Day/Night HD camera, CPM, variable high-speed pan/tilt motor and enclosure
• The body machined from aluminum alloy or 316#stainless steel, rugged and 5 proofs.
• 20X/30X optical zoom optional
• 1080P, IP or HD-SDI output optional
• 3W laser, 68°~1.5° adjustable
• Laser Night Vision range for human detection upto 350m
• Unique DIP switch & hot-key design simplify system setup
• Unique wiper design makes clear image in rainy/foggy/dusty day
• Unique CCD window from filmed and toughened optical glass
• Auto/Manual calibration ensure accurate motor operation
• Built in temperature control and prolong the using life
• Unique Firmware Online Upgrade (FOU) flexible for customized requirement and maintenance
• Compatible with ONVIF 2.0
• IP66/CE/FCC/RoHS compliance

Network Features

• Video Compression: H.264 Main Profile/MJPEG/JPEG Baseline
• Resolution: Main stream/Second stream: 1920*1080, 1280*720, 640*480, 320*240, 160*112; 1-25(30)f/s
• Bit Rate: 32Kbps～16Mbps,CBR/VBR
• Communication interface: 10/100Mbps Ehernet RJ-45 port
• Network protocol: TCP/IP, UDP, RTP,RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
• Storage: Recording set up to record by motion trigger,alarm trigger, manual, or schedule
• ONVIF: Support
• Support WEB browser,remote config/update,replay,record
• Network interface:10/100Mbps RJ45

Camera features

• 20X or 30X high resolution camera optional
• Image sensor: 1/2.8 Type Exmor CMOS Sensor
• Number of effective pixels: Approx. 3.27 Megapixels
• Focus Length: f=4.7mm(w)~94mm(t)(20X), f=4.3mm(w)~129mm(t)(30X)
• F value: F1.6~F3.5(20X), F1.6~F4.7(30X)
• Automatic infrared filter out mode(ICR)
• Backlight compensation,image freeze

Pan/Tilt Features

• User definable 128 preset , 8 preset tour
• User definable auto-scan,pattern,scan speed
• Screen will display Title,pan/ tilt position, zoom etc
• OSD password protection, prevent unauthorized change to the system
• Auto/manual calibration ensure accurate motor operation
• video freeze
• PELCO P/D protocol and customize protocol optional
• User definable left and right limitation, proportional pan speed
• User definable power-up action, inside temperature limited control
• Built in system memory with surge & non-volatile protection
