Applications

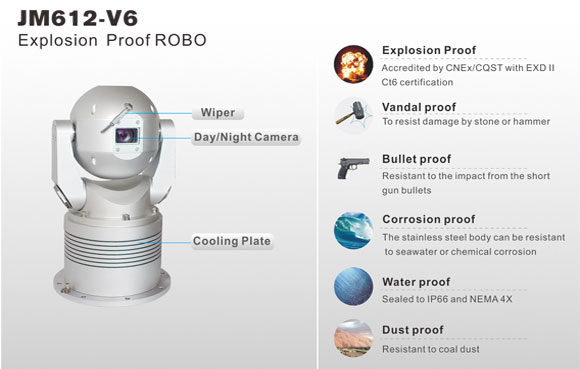

The Ex ROBO is built in High-performance IP module, support a variety of netword environmetns, quick connect, easy to expand wireless 3G netword monitoring, configuration easy and convenient, dual-stream design, low bandwidth usage, high quality image, the unique six proof feature make it fit the high-risk applications, hazardous environment and high crime rate applications.
Main application including: Marine, Military, Prision, Nuclear plants, coast defense, ships, airport, armoured vehicles, city surveillance and government ..etc..the explosion proof feature can fit most explosive area monitoring, such as flammable and explosive gas, liquid, solid processing chemical plants, oil fields, offshore drilling platforms, gas stations and oil tankers, oil refineries and underground mines and other

Features

• H.264 the pure hardware real-time high-speed compression
• image support D1(720*576),Half-D1(720*288),CIF(352*288)
• built in Web server
• Support DDNS
• Motion detection function, user-defined area and sensitivity
• privacy mask protection
• Support alarm prerecord and record function
• adjustable network Bandwidth rate
• SD record, incluidng motion record, timing record and keys record
• Unique CCD window from filmed and toughened optical glass
• Unique wiper design makes clear image in rainy/foggy/dusty day
• On-Screen-Display programming menu
• Auto/Manual calibration ensure accurate motor operation
• Wiper, heater & internal temperature control
• The body machined from aluminum alloy or 316#stainless steel, rugged and 6 proofs.
• IP66/CE/FCC/RoHS compliance

Camera Features

• Bult-in Day/night Camera
• 530TVL High resolution
• 36x,26x,18x optical zoom camera available
• Mini. illumination:0.1Lux(color,1/3s) 0.01Lux(BW,1/3s)
• Wide dynamic、privacy masking zone
• Images mirror
• Automatic infrared filter out mode(ICR)
• Image freeze
• Electronic shutter/low shutter
• Backlight compensation

Pan/Tilt Features

• 360° endless rotation
• User definable 128 preset , 8 preset tour
• User definable auto-scan,pattern,scan speed
• Screen will display Title,pan/ tilt position, zoom etc
• users definable inside temperature limited control
• Bulit-in OSD menu,support password protection function
• Video freeze,8 privacy masking zone
• left limit and right limit,humanize of focus and speed proportion
• User definable power-up action,including self-testing diagnostics
• Surge & non-volatile protection
• RS-485/RS-422 half duplex and full duplex optional
• Pelco P/D protocol and customize protocol optional

Network Parameters

CPU	32 Bit RISC Processor
RAM	256M DDR2
ROM	8MB FLASH ROM
Network
Protocol	TCP/IP, UDP, MULTICAST,SNMP,DNS, DDNS, DHCP, SMTP,FTP,BOOTP,SNTP, HTTP, PPPOE,ICMP,ARP
Interface	RJ45 10M/100M Interface
Video
Algorithm	H.264 video compression
Bit rate	16Kbit- 4M bitps
Resolution	PAL: 352*288 (25fps) 720*576 (25 fps) ,NTSC: 352*240 (30fps) 720*480 (30 fps)
Audio
Microphone	1ch
sampling rate	16K
output bit rate	20k bit
Alarm
alarm mode	motion detection, sensor alarm
Action	E-mail notification, FTP notification, sound alarm, pop up alarm message, alarm record
