Applications

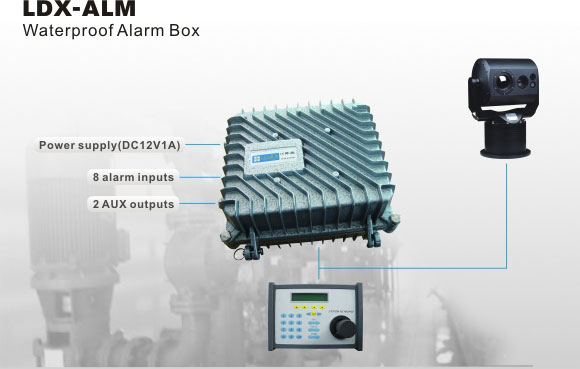

LDX-ALM alarm box is with 8-ch alarm input and 2-ch alarm output, That is mainly used to PTZ camera or other type of emergency equipment auxiliary linkage control. The alarm control system can respond to some alarm probe signal, and then send the control signal to the camera, make the camera call preset /auto scan function.etc.. Such as when it received the alarm information, call 1 to 8 a preset, call 9 ~ 16 th preset, 17 ~ 24 preset or 25 ~ 32 preset etc...

Features

• 8 Alarm inputs ID selectable from 1~8#, 9~16#, 17~24#, 25~32#
• 2 Alarm relay outputs
• Communication Protocol: Pelco P/D
• Capable to drive water pump as water washer
• Alarm Linkage to preset, pattern, auto scan
• Capable to send alarm information to the keyboard controllers
• IP Module and power supply are optional

TECHNICAL PARAMETER

• Power supply:DC12V/1A
• Alarm Inputs:8 channels input, passive switch point, photoelectric isolation
• Alarm Outputs:2 AUX relay outputs rated 5VDC 500mA
• Communication:RS-485 up to 1200meters
• Two group DIP switch setup
• Housing:Aluminum die cast rated IP68
• Continues working temperature: -20℃~+50℃
• Storage temperature:-40℃~+60℃
• Dimension:24×20×15CM(L×W×H)
