Applications

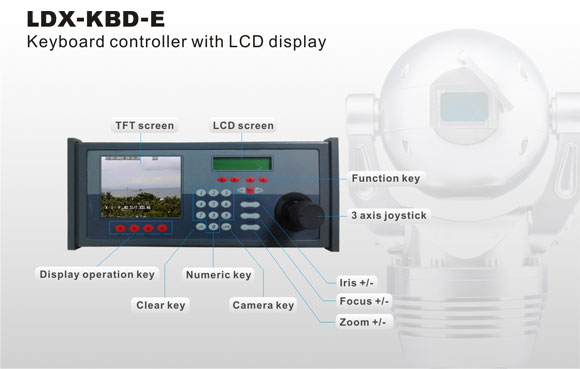

The keyboard with a video display function. The user through dial the code switch, can choose different agreement and baud rate. The video shows the function, use 5.6 inch TFT LCD screen, two way video signal input; Parameter display using 20 * 2 LCD, operation interface friendly. The keyboard with a real time clock (RTC) and alarm inquires the function. 3-Axis joystick,it can control high-speed Dome,Matrix,DVR.it can control the aperture of the lens, focus and zoom, setting/call/remove a preset, setting, and calls to be automatic scanning, etc.

Featuers

• Support DVR/Matrix/Speed dome
• 5.6 inch monitor,Alarm function.
• Preset Point Shot/Set/Clear
• Built-in buzzer and key warning tones
• AUX,Clock
• Convenient connection for the power supply
• UTP connection
• 20×2 LED display,which show the cameras and 3-axis joystick status etc.

Specifications

• Power supply:12V DC 500mA
• Power consumption:12W
• Weight:1kg
• Size:160(W)×220(L)×95(H)mm(with joystick)
• Communication interface:RS-485
• Protocol:Pelco P/D(default with Pelco D)
• Baud Rate:1200~9600bps(default with 2400bps)
• Communication distance:1200m
