Applications

The laser illuminator working at 808nm frequency has totally 15W optical output, which offer super powerful light source for the camera in night applications. By the powerful 15W Laser illumination, the camera can recognize the human face at 1km, and detect a car size target at 2km away.

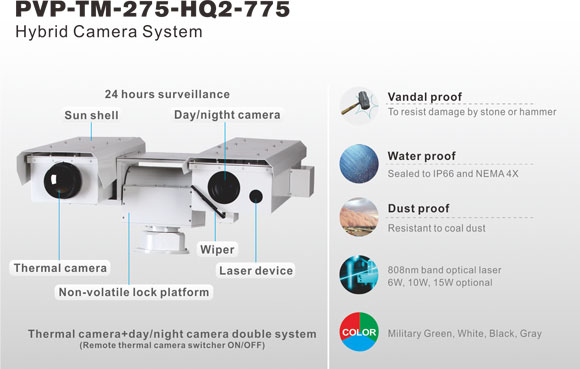

And the state-of-art dual camera design of pan/tilt system offers not only flexible pan and tilt rotation, but also delivers an accurate user controllable interface, which allows users to operate the system in “micro-step” way. By the micro-step control, the pan/tilt system can track the long range target at the most appropriate way.

Features

• All Metal body with sealed waterproof (IP66) and vandal proof design
• Geared pan/tilt design with auto-lock function
• Unique wiper design makes clear image in rainy/foggy/dusty day
• Built-in Laser Module,IR distance 1~3Km
• Unique micro-step function design to ensure the precision of surveying long distance target
• CCD window with filmed and toughened K9 glasses
• Unique DIP switch & hotkey design simplify system setup
• The thermal part separate remote ON/OFF
• Unique Firmware Online Upgrade (FOU) function provide convenience for customized requirement and system maintenance
• Built in temperature control and thermal part separate remote ON/OFF prolong the using life

Thermal Optical Parameter

• FPA(Focal Plane Array):320×240 or 640×480
• Detector Material:Vanadium Oxide(VOX)
• Detectable IR Wavelength:7.5~14μm
• Sensitivity(NETD):35mk@f1.0/85mk@f1.6
• Time to image:less than 2 second
• Minimum pixel size:38μm(320*240 Pixel)
• Effective imaging temperature:-40ºC~+75ºC
• Lens:275mm motorized lens
• Multiple choice of fixed or motorized focus lens optional

CCD Camera Parameter

• Image sensor:1/2" Sony Ex-view HAD CCD(Day/Night)
• Horizontal Resolution:Color 540TVL; B/W 600TVL
• Minimum illumination:0.003LuxF1.2(night,IRunder0Lux); 0.02Lux F1.2(DAY)
• Focus:12.5~775mm
• Optical Zoom:62X
• F Value:F3.8–F22.0
• View Angle(1/2"CCD):28°43′ x 21°44′(w) 0°29′ x0°22′(t)
• M.O.D:3m

Pan/Tilt Parameter

• User definable 128 target presets, 8 preset tours, preset video frozen
• User definable auto-scan, pattern, scan speed/li>
• Auto/manual calibration ensure accurate motor operation
• User definable left and right limitation, proportional pan speed
• OSD password protection, prevent unauthorized change to the system
• OSD programming menu,inside temperature and PTZ(Title/Time/Pan/Tilt/Zoom display)
• User definable power-up action, including self-testing diagnostics
• Built in system memory with surge & non-volatile protection
• RS-485/RS-422 half duplex and full duplex optional
• PELCO P/D protocol and customize protocol optional
