Applications

• The plane gas and mantenance station
• Gas station and oil tanker
• Oilfield and drilling platform of sea
• Petrochemical and oil refineries
• Printing industry,textile industry

•                    Coal mine of underground
•                    Garbage disposal plant
•                    Granary
•                    Sugar refineries
•                    Metal grinding factory

Features

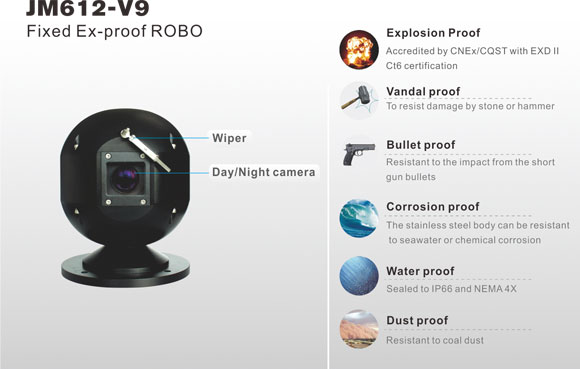

• The body machined from aluminum alloy or 316#stainless steel, rugged and 6 proofs.
• Unique CCD window from filmed and toughened optical glass
• Unique wiper design makes clear image in rainy/foggy/dusty day
• Bulit-in high sensitivity and high resolusion Camera,18x/36x optical optional
• Effective detection range 300~1000m
• Screen will display Title, zoom etc
• users definable inside temperature limited control
• Built-in OSD menu,support password protection function
• Unique DIP switch design, offers the operator an easy-to-use windows
• Surge & non-volatile protection
• RS-485/RS-422 half duplex and full duplex optional
• Pelco P/D protocol and customize protocol optional
• Unique Firmware Online Upgrade (FOU) flexible for customized requirement and maintenance
• IP66/CE/FCC/RoHS compliance

Mechanical Parameter

• Aluminum alloy or (#316L)stainless steel body:8~22mmmm
• Filmed and toughened glass:5mm
• Continues working temperature:-20°C-+50°C
• Storage temperature:-40°C-+60°C
• Net weight:Appox 3KG(Al alloy) 5KG(Stainless Steel)

Electrical Parameter

• Input voltage:AC 24V(12VDC optional)
• Power consumption:50VA(heater)
